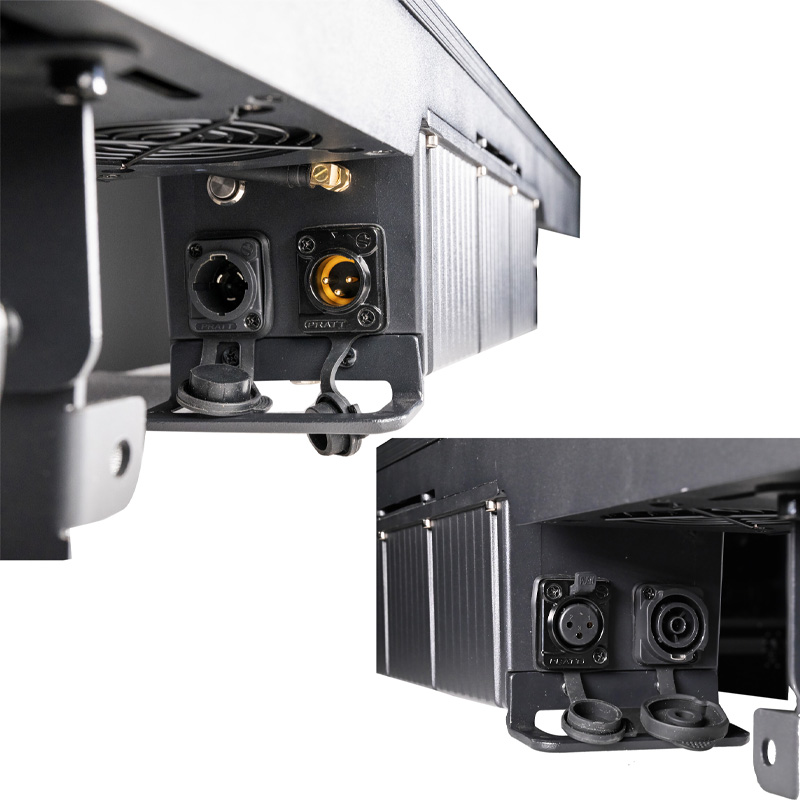

IP67 32+16 pixel linear strobe light with chase and wash effect for outdoor stage lighting

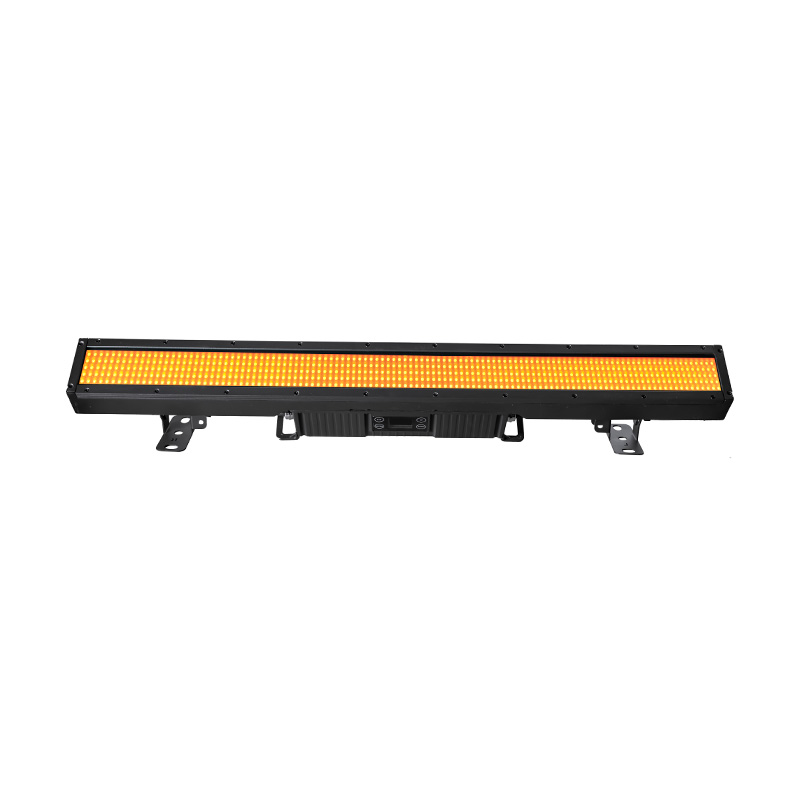

High brightness pixel strobe bar light with diffusion effect for stage and architectural wash

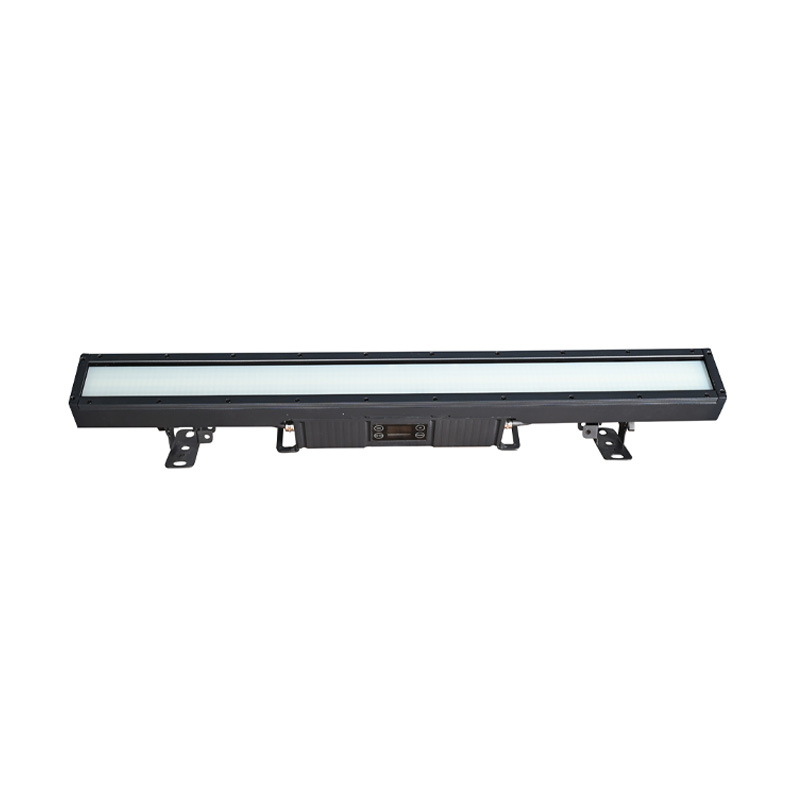

Outdoor waterproof linear pixel strobe light for concerts and permanent installations

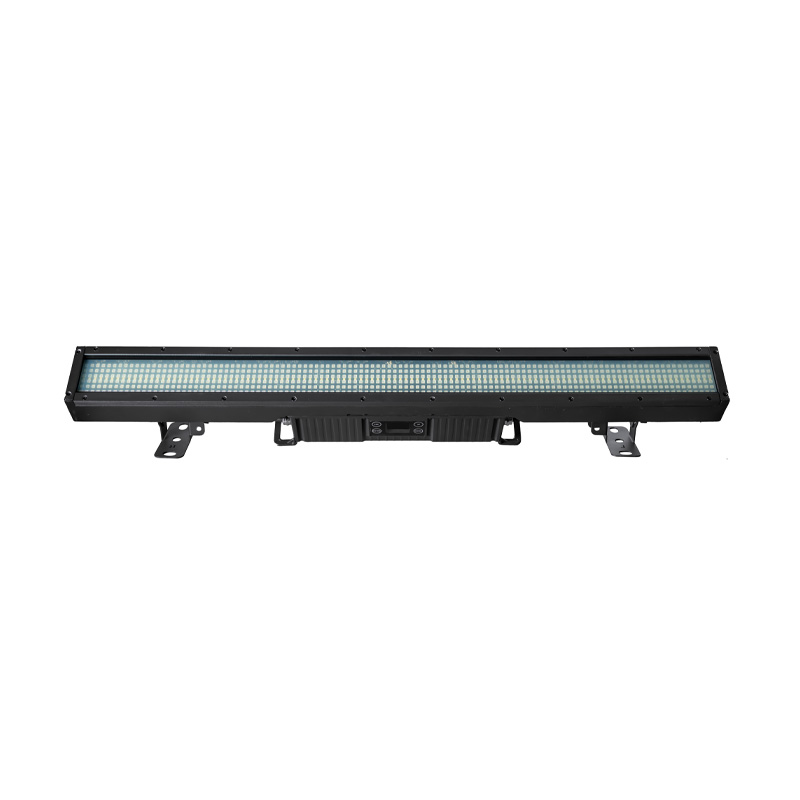

32+16 segment pixel strobe bar light with smooth color wash and strobe effects

IP67 32+16 Segment Pixel Strobe Bar

IP67 32+16 Pixel Bar Light delivers high brightness, smooth color mixing, chase, strobe and diffusion effects. IP67 rated, ideal for outdoor shows and fixed installations.

Brand model :
QR-MX001
Input voltage :
AC 100V–240V, 50/60 Hz
Light source :
672 × 0.5 W 5050 RGB LEDs
Protection level :
IP67
Channel mode :
AH17, CH07, CH15, CH17, CH21, CH33, CH39, CH65, CH68, CH70, CH112, CH117

Inquiry Now

Function Description

IP67 32+16 Segment Pixel Strobe Bar Light integrates chase,strobe,and frost effects,delivering high brightness with smooth,even color output for clean visuals and strong depth.Featuring an IP67-rated design,it is dustproof and waterproof,making it reliable for outdoor performances and long-term installations, while also providing excellent wall-wash coverage.Its linear form allows flexible linking and installation,and the low-profile black housing minimizes visual presence,keeping the audience’s focus on the lighting effects themselves.

Technical parameters

Light Source System

Light source: 672 × 0.5 W 5050 RGB LEDs, 112 × 3 W 3030 white LEDs
LED life: >20,000 hours

Color System

Uniform RGBW color mixing system with rainbow Effect
Creates dynamic visuals and rich color variations

Effect

Strobe rate: 1–30 Hz
Dimming: 16-bit, 0–100% linear dimming
Features: Chase Effect, burst strobe, and frost

Electrical & Interface

Rated power: 500 W
Input voltage: AC 100V–240V, 50/60 Hz
Connections: DMX512 input/output, power input/output

Control & Programming

Channel modes: AH17, CH07, CH15, CH17, CH21, CH33, CH39, CH65, CH68, CH70, CH112, CH117.
Control modes: DMX512, auto, master/slave, sound active, with RDM function

Fixture Structure

Housing material: Metal, black finish
Protection level: IP67
Working environment: -30°C to 50°C

Size and weight

Product size:
Net weight:
